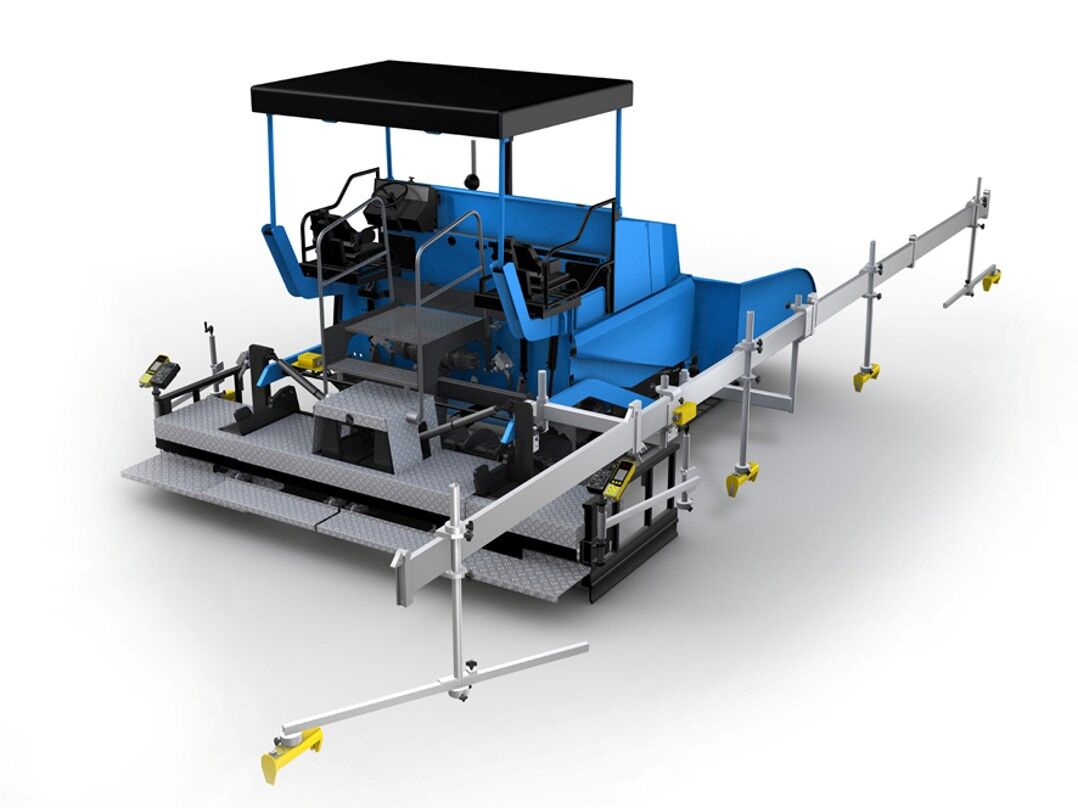

Big-Ski ''Modular''- 9m kit
0,00 EUR
mechanic assembly for 3 Grade sensors
without tow arm bracket
consisting of:
1 x 04-05-00740, middle bracket
2 x 04-05-00741, module element
2 x 04-05-00742, sensor bracket, ext.
2 x 04-05-00743, sensorboom
3 x 04-05-00744, sliding bracket
1 x 04-05-00769, sensor bracket
5 x 04-05-00745, clamp collar Ø 45mm
2 x 04-05-00746, clamp collar Ø 50mm
1 x 04-05-00760, mounting plate
7 x 01-17-02805, star knob screw M8
26 x 01-17-02806, star knob screw. M10
2 x 01-01-00178, screw M6x12
8 x 01-01-00553, screw M16x55
4 x 01-01-00631, screw M10x70
1 x 04-05-00764, swing arm, short
1 x 04-05-00765, swing arm long
